DC brushless fan , Cooling fan , 5V DC fan ,Axial dc fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

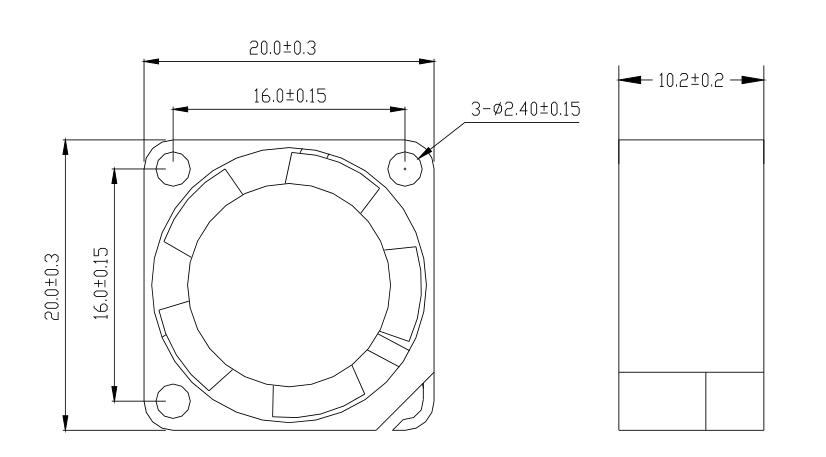

| Size: 20*20*10mm Series
| Voltage: DC 5V-12V
| Current: 0.03-0.13Amp
| Speed: 10000-14000rpm
| Total Airflow:0.78-1.13CFM
| Air Pressure: 2.28-4.28mmH2O
| Total Noise: 20-27dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 20*20*10-L05 | 5 | 4.3to5.4 | 0.06 | 0.30 | 10000 | 0.022 | 0.78 | 2.28 | 0.089 | 20.0 |
| 20*20*10-L12 | 12 | 7.0to13.5 | 0.03 | 0.36 | ||||||
| 20*20*10-MO5 | 5 | 4.3to5.4 | 0.08 | 0.40 | 12000 | 0.027 | 0.98 | 3.39 | 0.133 | 25.5 |
| 20*20*10-M12 | 12 | 7.0to13.5 | 0.05 | 0.60 | ||||||
| 20*20*10-H05 | 5 | 4.3to5.4 | 0.13 | 0.65 | 14000 | 0.032 | 1.13 | 4.28 | 0.168 | 27.0 |
| 20*20*10-H12 | 12 | 7.0to13.5 | 0.08 | 0.95 | ||||||
Link: Rubber 3D print
