DC brushless fan , Cooling fan , 12v fan ,Mini dc fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

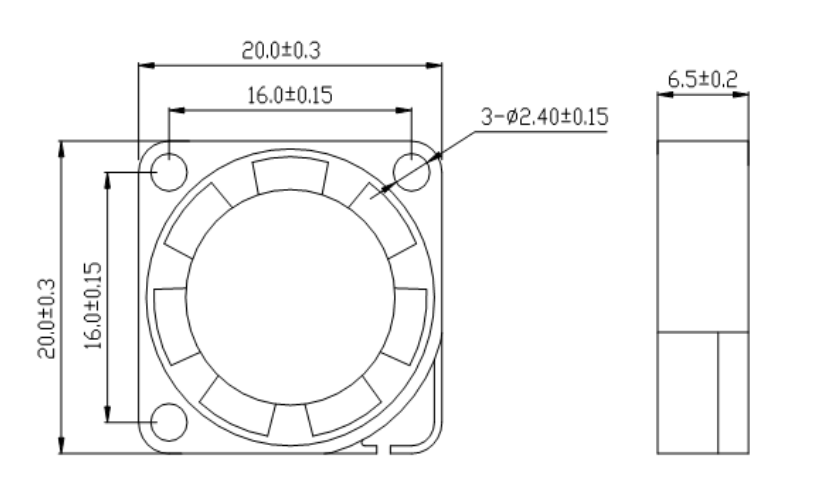

| Size: 20*20*6mm Series
| Voltage: DC 5V-12V
| Current: 0.08-0.16Amp
| Speed: 8000-12000rpm
| Total Airflow:0.79-1.12CFM
| Air Pressure: 1.95-2.69mmH2O
| Total Noise: 21-31dBA

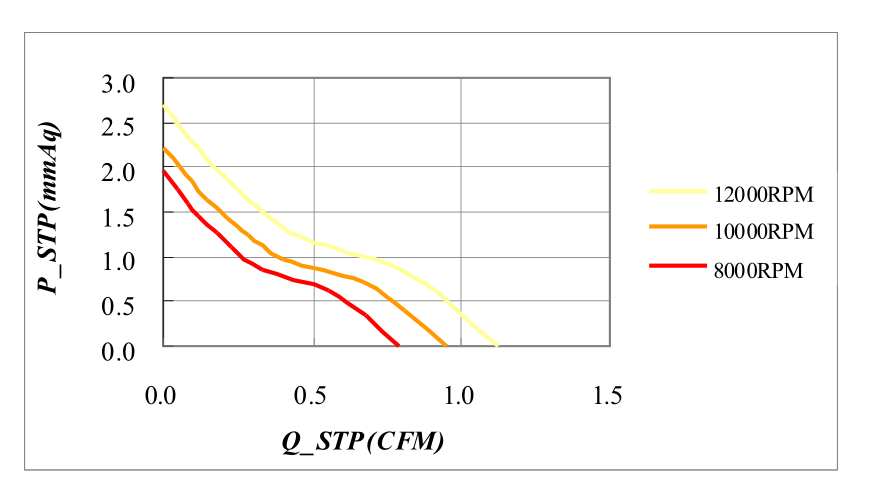

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 20*20*06-M05 | 5 | 4.3to5.4 | 0.08 | 0.40 | 8000 | 0.022 | 0.79 | 1.95 | 0.077 | 21.5 |
| 20*20*06-M12 | 12 | 7.0to13.5 | 0.04 | 0.48 | ||||||
| 20*20*06-H05 | 5 | 4.3to5.4 | 0.12 | 0.60 | 10000 | 0.027 | 0.95 | 2.22 | 0.087 | 25.6 |
| 20*20*06-H12 | 12 | 7.0to13.5 | 0.06 | 0.72 | ||||||
| 20*20*06-HO5-HH | 5 | 4.3to5.4 | 0.16 | 0.80 | 12000 | 0.032 | 1.12 | 2.69 | 0.106 | 31.2 |
| 20*20*06-H12-HH | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
