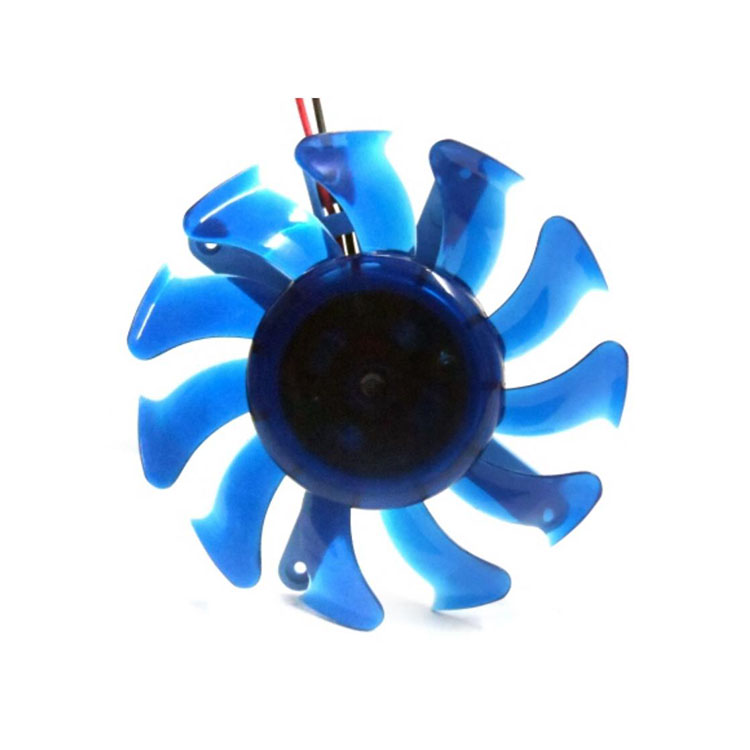

Frameless dc coolingfan , Brushless axial DC fan , Mini DC fanm3
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 Material.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

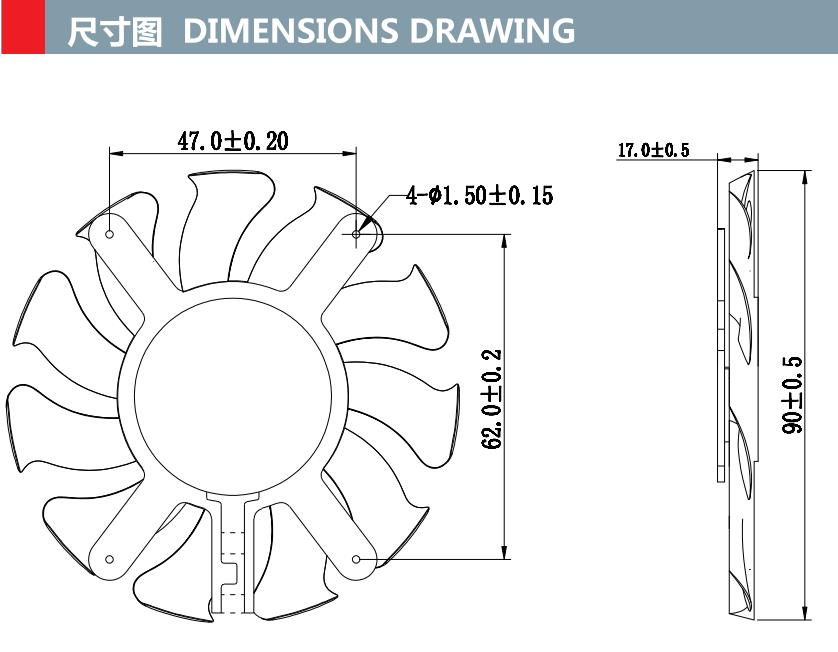

| Size: 90*90*17mm Series
| Voltage: DC 5V-24V
| Current: 0.02-0.47 Amp
| Speed: 1500-3500rpm
| Airflow: 22.87-53.36CFM

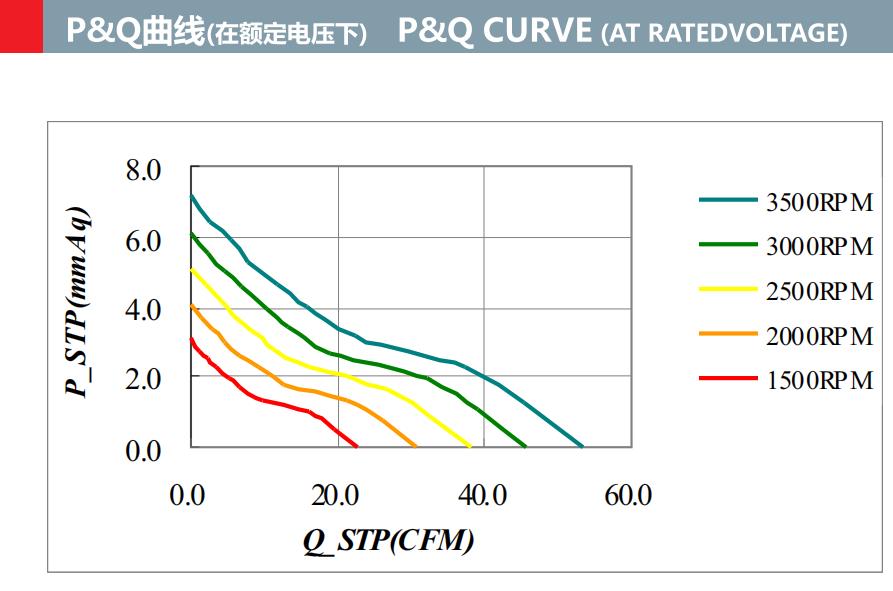

| Air Pressure: 3.07-7.16mmH2O
| Total Noise: 22.3-37.8dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY9017L05 | 5 | 3.6to6.8 | 0.08 | 0.4 | 1500 | 0.65 | 22.87 | 3.07 | 0.12 | 22.3 | |
| YY9017L12 | 12 | 7.0to13.5 | 0.03 | 0.36 | |||||||
| YY9017L24 | 24 | 18to26.5 | 0.02 | 0.48 | |||||||
| YY9017M05 | 5 | 3.6to6.8 | 0.18 | 0.9 | 2000 | 0.87 | 30.49 | 4.09 | 0.16 | 25.8 | |
| YY9017M12 | 12 | 7.0to13.5 | 0.07 | 0.84 | |||||||
| YY9017M24 | 24 | 18to26.5 | 0.03 | 0.82 | |||||||
| YY9017H05 | 5 | 3.6to6.8 | 0.35 | 1.75 | 2500 | 1.08 | 38.11 | 5.11 | 0.20 | 30.6 | |
| YY9017H12 | 12 | 7.0to13.5 | 0.14 | 1.68 | |||||||
| YY9017H24 | 24 | 18to26.5 | 0.07 | 1.58 | |||||||
| YY9017H12-HH | 12 | 7.0to13.5 | 0.28 | 3.36 | 3000 | 1.30 | 45.73 | 6.13 | 0.24 | 33.9 | |
| YY9017H24-HH | 24 | 18to26.5 | 0.13 | 3.12 | |||||||
| YY9017H12-VH | 12 | 7.0to13.5 | 0.47 | 5.54 | 3500 | 1.51 | 53.36 | 7.16 | 0.28 | 37.8 | |
| YY9017H24-VH | 24 | 18to26.5 | 0.22 | 5.38 | |||||||
