dc brushless fan , Cooling fan , 5v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

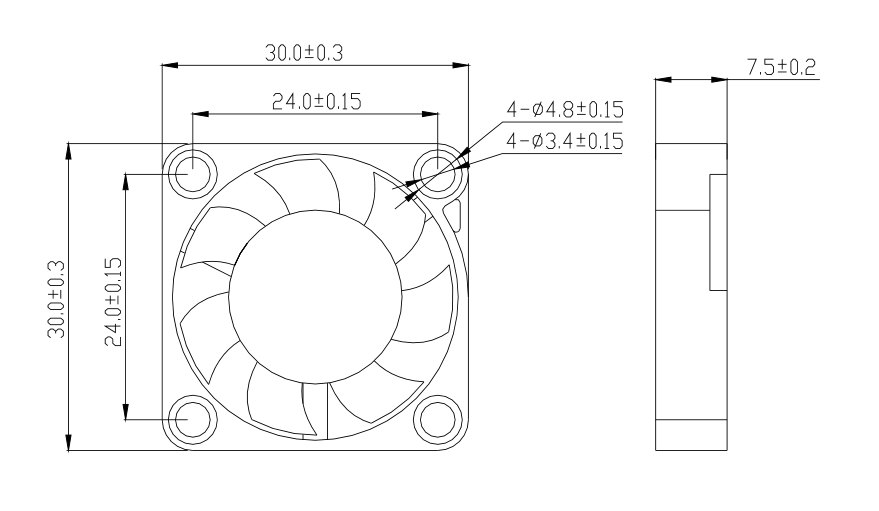

| Size: 30*30*7mm Series
| Voltage: DC 5V-12V
| Current: 0.05-0.32Amp
| Speed: 5000-13000rpm
| Total Airflow:1.23-3.81CFM
| Air Pressure: 0.82-6.06mmH2O
| Total Noise: 22-38dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 30*30*07-LO5 | 5 | 4.3to5.4 | 0.12 | 0.60 | 5000 | 0.03 | 1.23 | 0.82 | 0.03 | 22.0 |
| 30*30*07-L12 | 12 | 7.0to13.5 | 0.05 | 0.60 | ||||||
| 30*30*07-MO5 | 5 | 4.3to5.4 | 0.17 | 0.85 | 8000 | 0.06 | 2.28 | 2.40 | 0.09 | 27.0 |
| 30*30*07-M12 | 12 | 7.0to13.5 | 0.07 | 0.84 | ||||||
| 30*30*07-HO5 | 5 | 4.3to5.4 | 0.25 | 1.25 | 11000 | 0.09 | 3.13 | 4.42 | 0.17 | 34.5 |
| 30*30*07-H12 | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
| 30*30*07-HO5-HH | 5 | 4.3to5.4 | 0.32 | 1.60 | 13000 | 0.10 | 3.81 | 6.06 | 0.24 | 38.5 |
| 30*30*07-H12-HH | 12 | 7.0to13.5 | 0.13 | 1.56 | ||||||
