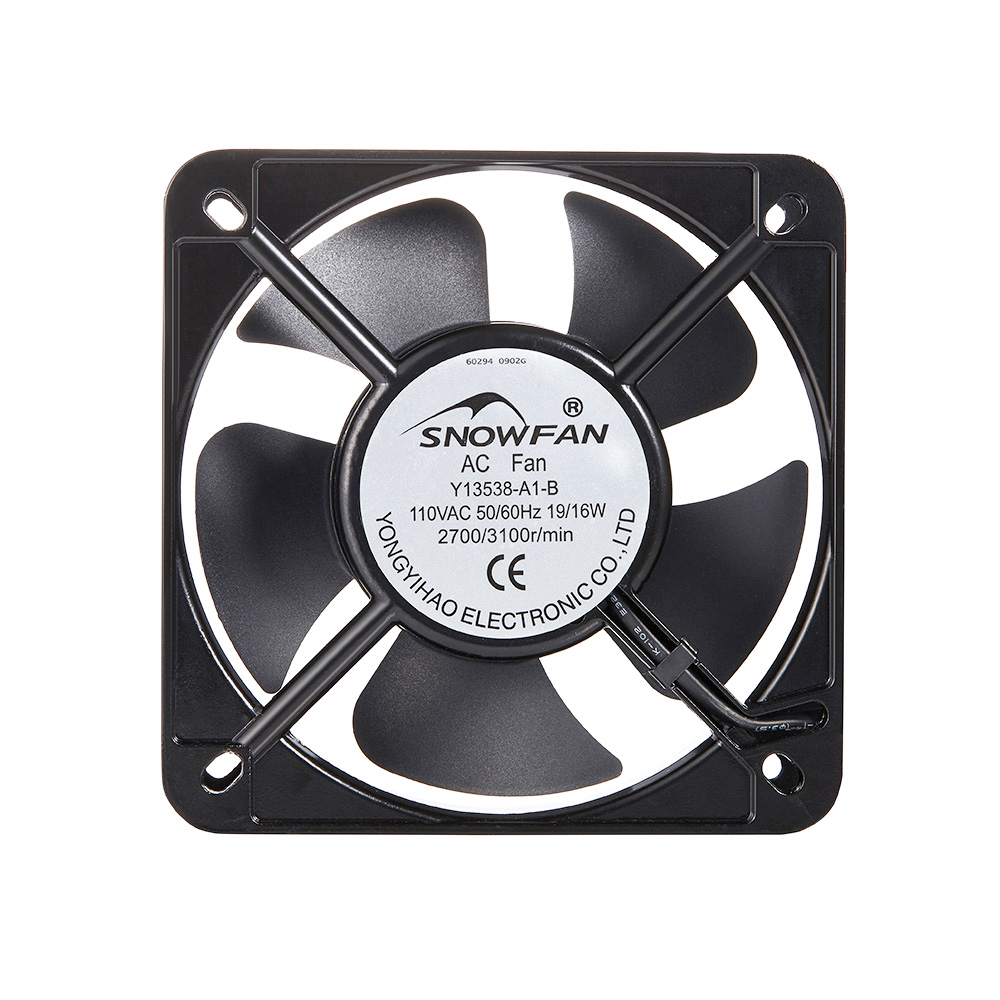

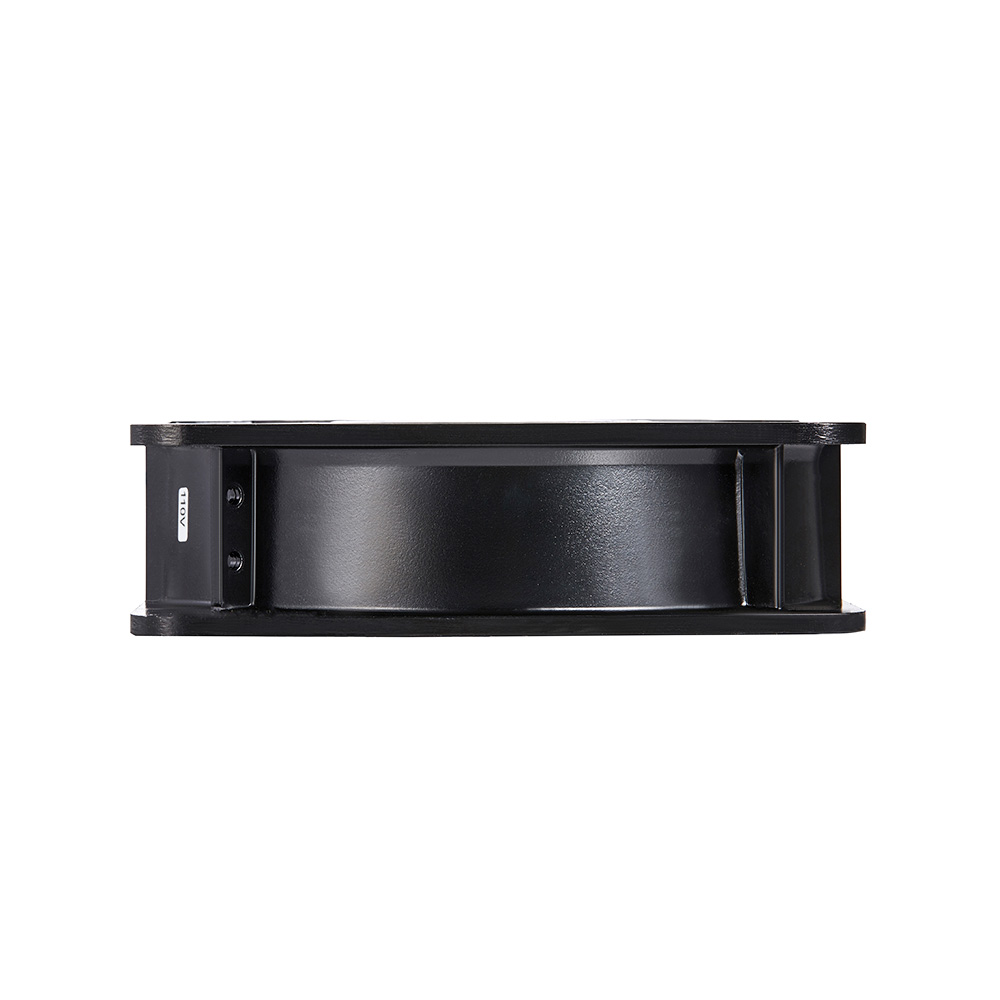

135x 135 x38 mm (5.31" x 5.31"x 5.31" in.) | Ball bearing |115/230V AC | Speed:2600RPM/3050RPM
Download
3D Model
SHARE:
**Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
**CE Certificated with dual-ball bearings has a lifespan of 50,000 hours. Can be mounted in any direction.
**High Speed: This model is designed to maximize airflow for best cooling on applications.
| MODEL | Bearing System | Rated Voltage | Freq. | Current | Input Power | Speed | Maximum Air flow | Max static Pressure | Noise | Mass | ||
| PART NO. | VAC | HZ | Amp | Watt | R.P.M | m3/min | CFM | Pa | INH2O | DB-A | g | |
| Y13538-A1 | B/S | 115 | 50/60 | 0.34/0.28 | 25/19 | 2600-3050 | 3.2/3.8 | 113/135 | 72/92 | 0.29/0.37 | 46/53 | 555 |
| Y13538-A2 | B/S | 230 | 50/60 | 0.18/0.13 | 25/19 | 2600-3050 | 3.2/3.8 | 113/135 | 72/92 | 0.29/0.37 | 46/53 | 555 |
