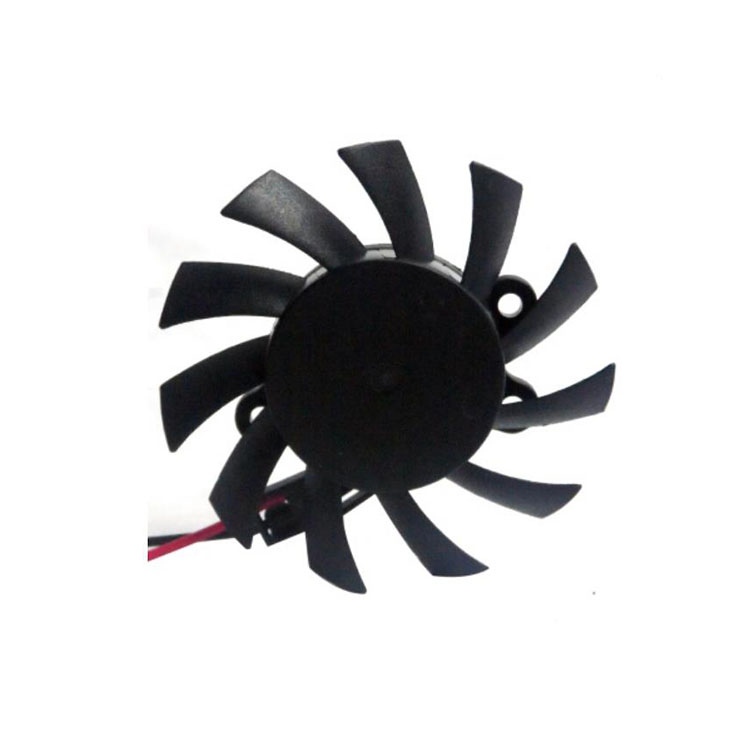

Frameless dc coolingfan , Brushless axial DC fan , Mini DC fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

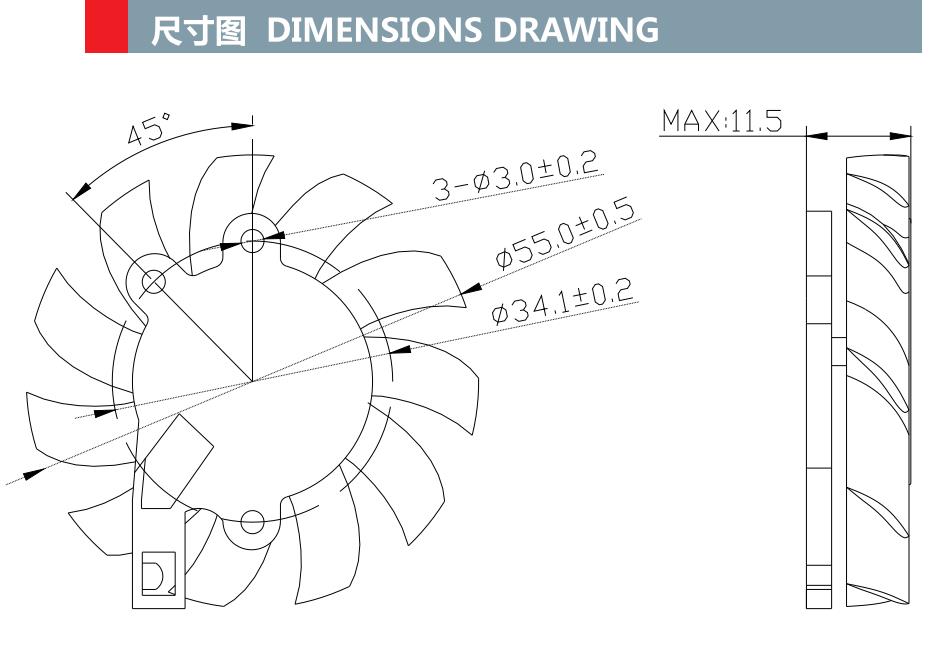

| Size: 60*60*10mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.39 Amp
| Speed: 3000-5000rpm
| Airflow: 10.74-17.89CFM

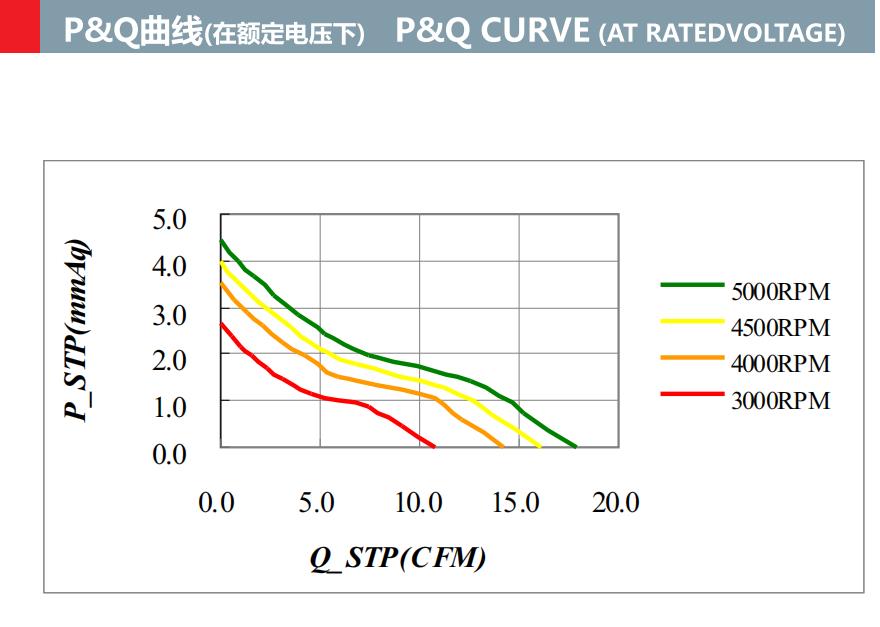

| Air Pressure: 2.64-4.41mmH2O
| Total Noise: 21.6-33.1dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY6010L05 | 5 | 3.6to6.8 | 0.15 | 0.75 | 3000 | 0.31 | 10.74 | 2.64 | 0.1 | 21.6 | |
| YY6010L12 | 12 | 7.0to13.5 | 0.06 | 0.72 | |||||||
| YY6010L24 | 24 | 18to26.5 | 0.03 | 0.72 | |||||||
| YY6010M05 | 5 | 3.6to6.8 | 0.39 | 1.95 | 4000 | 0.41 | 14.32 | 3.52 | 0.14 | 28.8 | |
| YY6010M12 | 12 | 7.0to13.5 | 0.15 | 1.80 | |||||||
| YY6010M24 | 24 | 18to26.5 | 0.07 | 1.78 | |||||||
| YY6010H12 | 12 | 7.0to13.5 | 0.25 | 3.0 | 4500 | 0.46 | 16.11 | 3.97 | 0.16 | 30.8 | |
| YY6010H24 | 24 | 18to26.5 | 0.12 | 2.88 | |||||||
| YY6010H12-HH | 12 | 7.0to13.5 | 0.37 | 4.44 | 5000 | 0.51 | 17.89 | 4.41 | 0.17 | 33.1 | |
| YY6010H24-HH | 24 | 18to26.5 | 0.18 | 4.22 | |||||||
