DC brushless fan , Cooling fan , 12v fan.5V dc fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV/ROHS.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

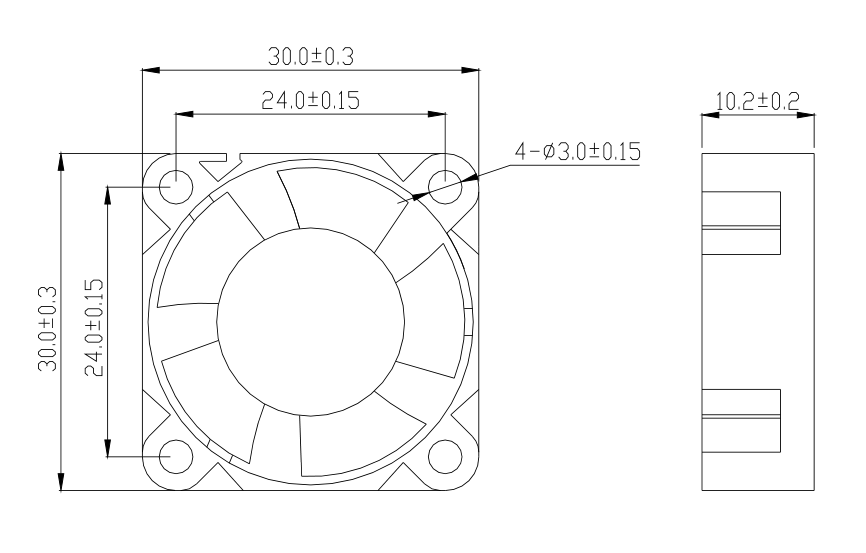

| Size: 30*30*10mm Series
| Voltage: DC 5V-12V
| Current: 0.04-0.22Amp
| Speed: 5800-13000rpm

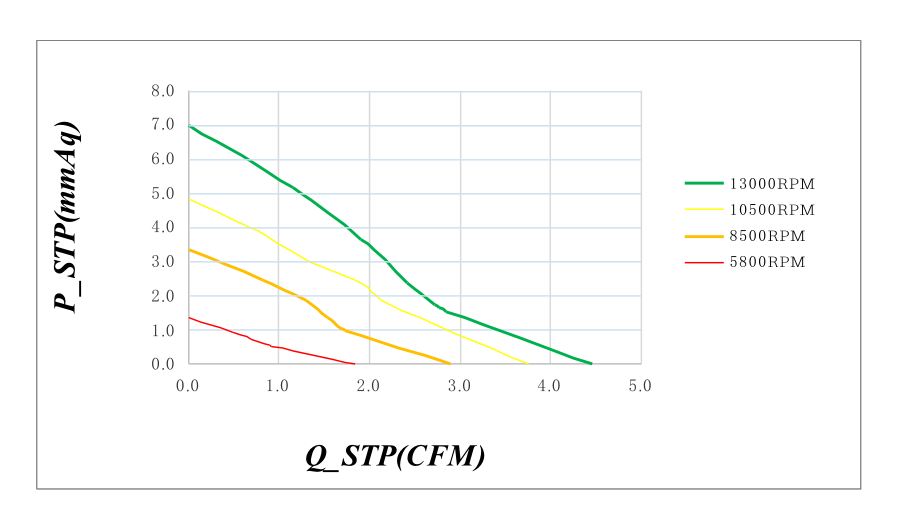

| Total Airflow:1.84-4.46CFM
| Air Pressure: 1.36-6.97mmH2O
| Total Noise: 24-37dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 30*30*10-LO5 | 5 | 4.3to5.4 | 0.10 | 0.50 | 5800 | 0.05 | 1.84 | 1.36 | 0.05 | 24.0 |
| 30*30*10-L12 | 12 | 7.0to13.5 | 0.04 | 0.48 | ||||||
| 30*30*10-M05 | 5 | 4.3to5.4 | 0.15 | 0.75 | 8500 | 0.08 | 2.90 | 3.34 | 0.13 | 29.0 |
| 30*30*10-M12 | 12 | 7.0to13.5 | 0.06 | 0.72 | ||||||
| 30*30*10-H05 | 5 | 4.3to5.4 | 0.17 | 0.85 | 10500 | 0.11 | 3.75 | 4.48 | 0.17 | 32.7 |
| 30*30*10-H12 | 12 | 7.0to13.5 | 0.08 | 0.96 | ||||||
| 30*30*10-H05-HH | 5 | 4.3to5.4 | 0.22 | 1.10 | 13000 | 0.13 | 4.46 | 6.97 | 0.27 | 37.8 |
| 30*30*10-H12-HH | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
