dc brushless fan , Cooling fan , 24v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

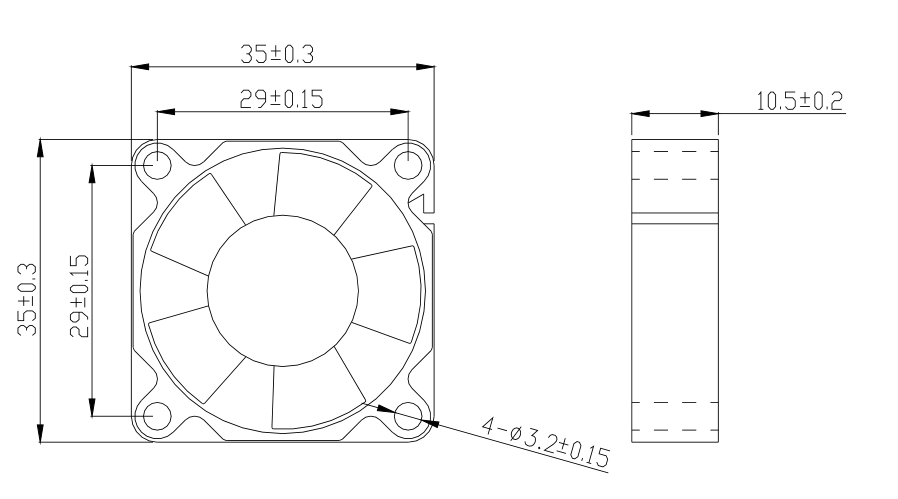

| Size: 35*35*10mm Series
| Voltage: DC 5V-12V
| Current: 0.04-0.24Amp
| Speed: 5000-11500rpm

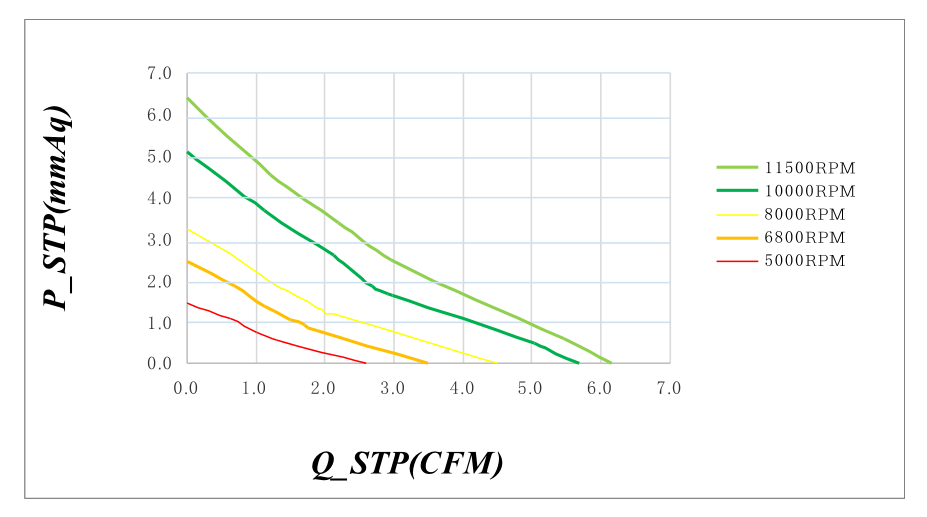

| Total Airflow:2.59-6.15CFM
| Air Pressure: 1.45-6.38mmH2O
| Total Noise: 25-42dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 35*35*10-LO5 | 5 | 4.3to5.4 | 0.09 | 0.45 | 5000 | 0.07 | 2.59 | 1.45 | 0.06 | 25.4 |
| 35*35*10-L12 | 12 | 7.0to13.5 | 0.04 | 0.48 | ||||||
| 35*35*10-M05 | 5 | 4.3to5.4 | 0.13 | 0.65 | 6800 | 0.10 | 3.50 | 2.45 | 0.10 | 30.0 |
| 35*35*10-M12 | 12 | 7.0to13.5 | 0.06 | 0.72 | ||||||
| 35*35*10-H05 | 5 | 4.3to5.4 | 0.20 | 1.00 | 8000 | 0.13 | 4.50 | 3.24 | 0.13 | 33.8 |
| 35*35*10-H12 | 12 | 7.0to13.5 | 0.09 | 1.08 | ||||||
| 35*35*10-HO5-HH | 5 | 4.3to5.4 | 0.21 | 1.05 | 10000 | 0.16 | 5.68 | 5.10 | 0.20 | 38.5 |
| 35*35*10-H12-HH | 12 | 7.0to13.5 | 0.10 | 1.20 | ||||||
| 35*35*10-H05-VH | 5 | 4.3to5.4 | 0.24 | 1.20 | 11500 | 0.17 | 6.15 | 6.38 | 0.25 | 42.0 |
| 35*35*10-H12-VH | 12 | 7.0to13.5 | 0.11 | 1.32 | ||||||
