heatsink cooling,DC Cooling fan,DC Brushless fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

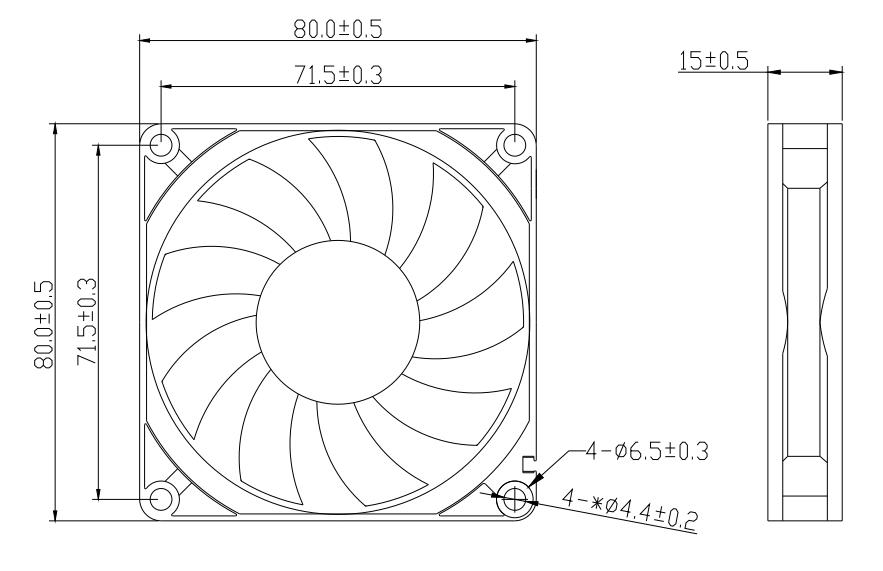

| Size: 80*80*15mm Series
| Voltage: DC 5V-24V
| Current: 0.03-0.17Amp
| Speed: 2000-3500rpm

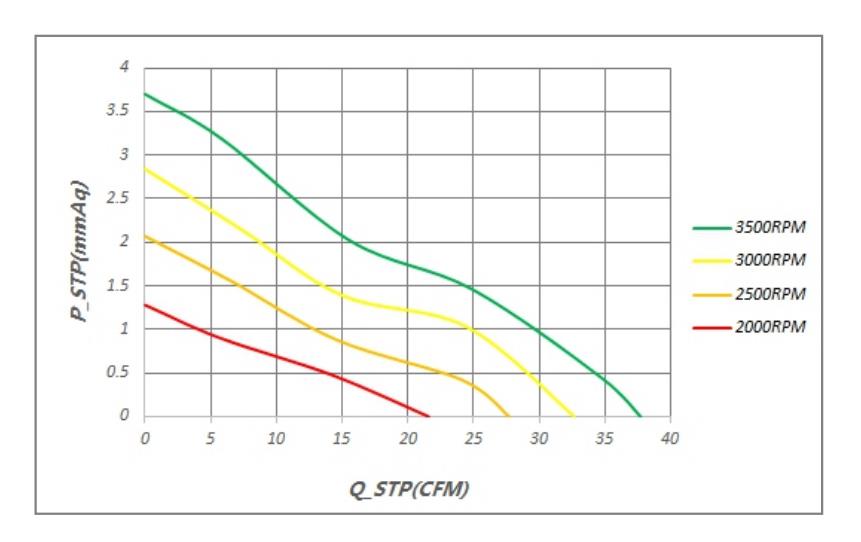

| Total Airflow: 21.59-37.71CFM
| Air Pressure: 1.28-3.7 mmH2O
| Total Noise: 24-40dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 80*80*15-LO5 | 5 | 3.6to6.8 | 0.10 | 0.10 | 2000 | 0.61 | 21.59 | 1.28 | 0.05 | 24 |
| 80*80*15-L12 | 12 | 7.0to13.5 | 0.04 | 0.04 | ||||||
| 80*80*15-M12 | 12 | 7.0to13.5 | 0.06 | 0.06 | 2500 | 0.78 | 27.71 | 2.07 | 0.08 | 30 |
| 80*80*15-M24 | 24 | 18to26.5 | 0.03 | 0.03 | ||||||
| 80*80*15-H12 | 12 | 7.0to13.5 | 0.12 | 0.12 | 3000 | 0.93 | 32.68 | 2.84 | 0.11 | 36.3 |
| 80*80*15-H24 | 24 | 18to26.5 | 0.06 | 0.06 | ||||||
| 80*80*15-H12-HH | 12 | 7.0to13.5 | 0.17 | 0.17 | 3500 | 1.07 | 37.71 | 3.7 | 0.15 | 40 |
| 80*80*15-H24-HH | 24 | 18to26.5 | 0.09 | 0.09 | ||||||
