waterproof cooling, DC Cooling fan, DC Brushless fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

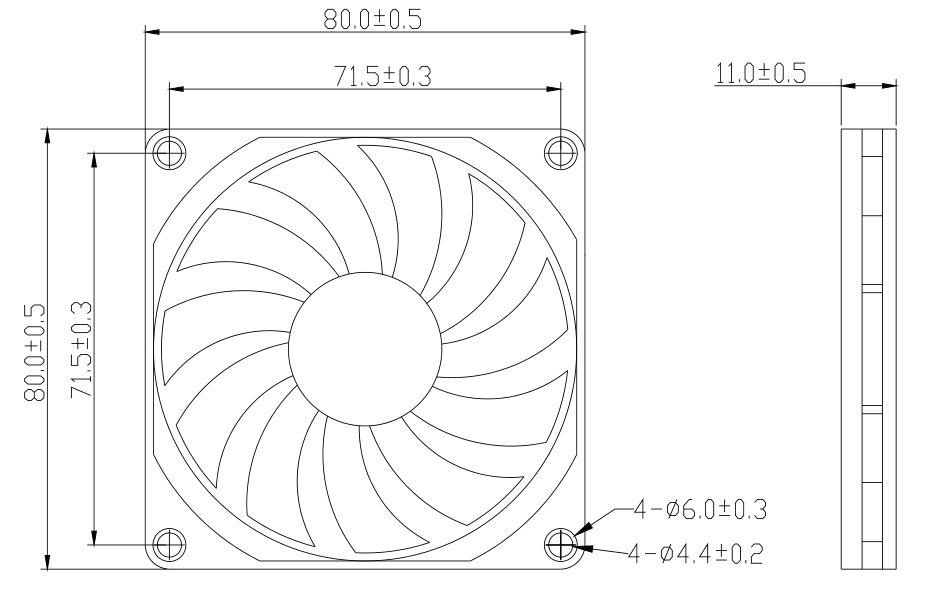

| Size: 80*80*10mm Series
| Voltage: DC 5V-24V
| Current: 0.04-0.22Amp
| Speed: 2500-3500rpm

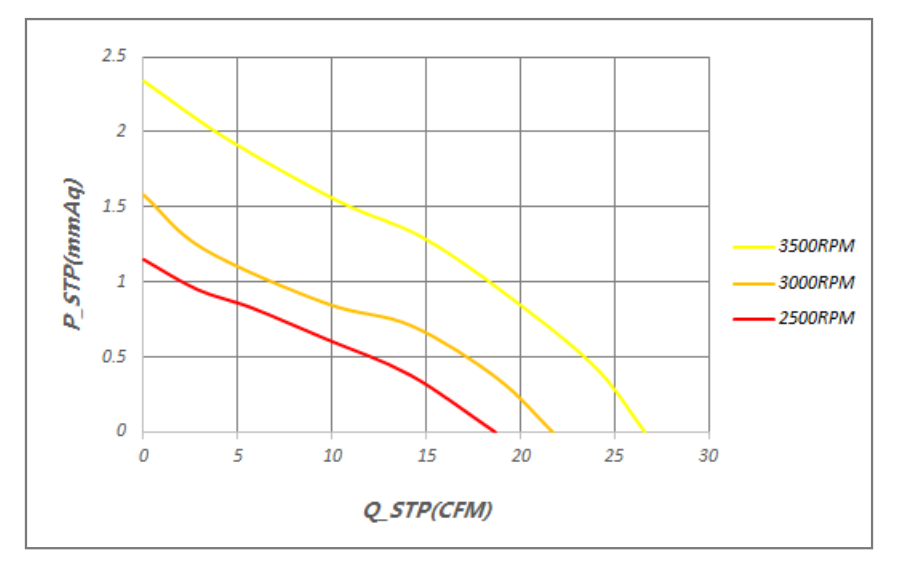

| Total Airflow: 18.65-26.59CFM
| Air Pressure: 1.15-2.34mmH2O
| Total Noise: 31-36dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 80*80*10-LO5 | 5 | 3.6to6.8 | 0.17 | 0.85 | 2500 | 0.53 | 18.65 | 1.15 | 0.05 | 31.3 |
| 80*80*10-L12 | 12 | 7.0to13.5 | 0.07 | 0.84 | ||||||
| 80*80*10-L24 | 24 | 18to26.5 | 0.04 | 0.96 | ||||||
| 80*80*10-M12 | 12 | 7.0to13.5 | 0.11 | 1.32 | 3000 | 0.61 | 21.7 | 1.58 | 0.06 | 33.5 |
| 80*80*10-M24 | 24 | 18to26.5 | 0.06 | 1.44 | ||||||
| 80*80*10-H12 | 12 | 7.0to13.5 | 0.22 | 2.64 | 3500 | 0.75 | 26.59 | 2.34 | 0.09 | 36.3 |
| 80*80*10-H24 | 24 | 18to26.5 | 0.11 | 2.64 | ||||||
