dc brushless fan , Cooling fan , 12v fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

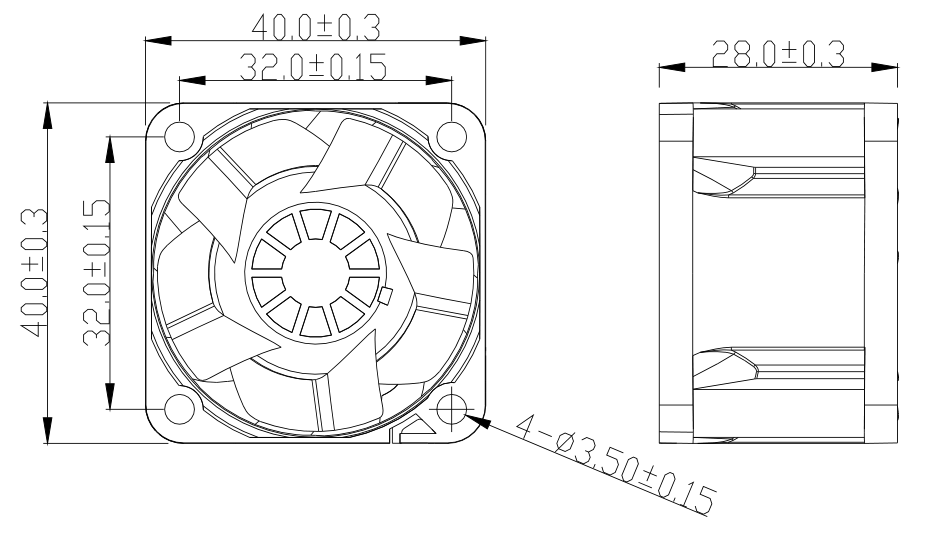

| Size: 40*40*28mm Series
| Voltage: DC 5V-24V
| Current: 0.08-0.6Amp
| Speed: 10000-22000rpm
| Total Airflow:13.25-30.33CFM
| Air Pressure: 16.33-71.5mmH2O
| Total Noise: 44-65dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 40*40*28-L12 | 12 | 8.0to13.5 | 0.15 | 1.80 | 10000 | 0.38 | 13.25 | 16.33 | 0.65 | 44.2 |
| 40*40*28-L24 | 24 | 18to26.6 | 0.08 | 1.92 | ||||||
| 40*40*28-M12 | 12 | 8.0to13.5 | 0.23 | 2.76 | 12000 | 0.40 | 13.91 | 19.97 | 0.79 | 48.8 |
| 40*40*28-M24 | 24 | 18to26.6 | 0.13 | 2.88 | ||||||
| 40*40*28-H12 | 12 | 8.0to13.5 | 0.30 | 3.60 | 14000 | 0.52 | 18.23 | 30.15 | 1.19 | 52.0 |
| 40*40*28-H24 | 24 | 18to26.6 | 0.15 | 3.60 | ||||||
| 40*40*28-H12-HH | 12 | 8.0to13.5 | 0.37 | 4.44 | 16000 | 0.62 | 21.57 | 36.56 | 1.44 | 57.2 |
| 40*40*28-H24-HH | 24 | 18to26.6 | 0.19 | 4.56 | ||||||
| 40*40*28-H12-VH | 12 | 8.0to13.5 | 0.60 | 7.20 | 22000 | 0.86 | 30.33 | 71.5 | 2.82 | 65.1 |
| 40*40*28-H24-VH | 24 | 18to26.6 | 0.30 | 7.20 | ||||||
