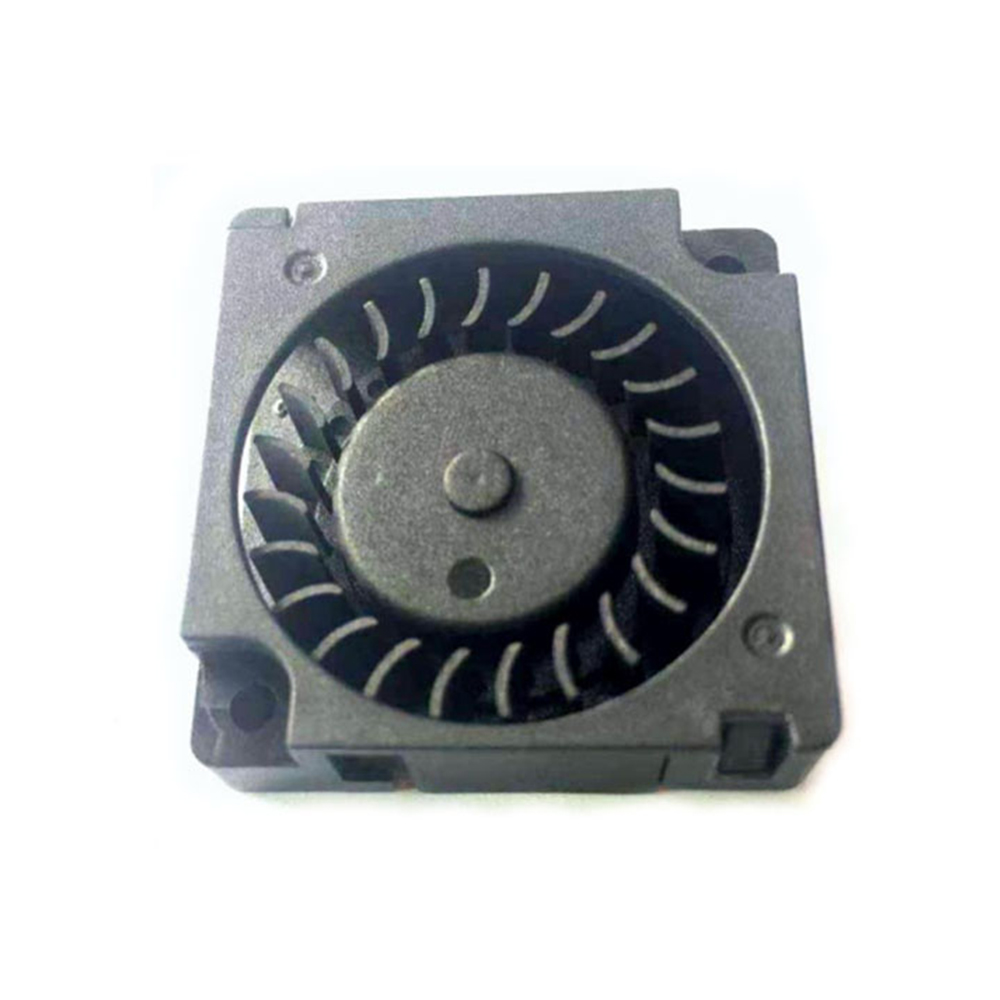

3010 DC Axial fan,Brushless blower DC fan 30*30*10mm
*Designed for projects that requires cooling or ventilation;
*For a replacement fan for various products:MID, UMPC, Smartbook, Handheld POS, and Small Plasma Generator,Disinfector... etc.
*High efficiency and low power consumption
*Bearing Type: Hydraulic/Ball Bearing
*Full Certification included CE/UL/TUV.
*Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:

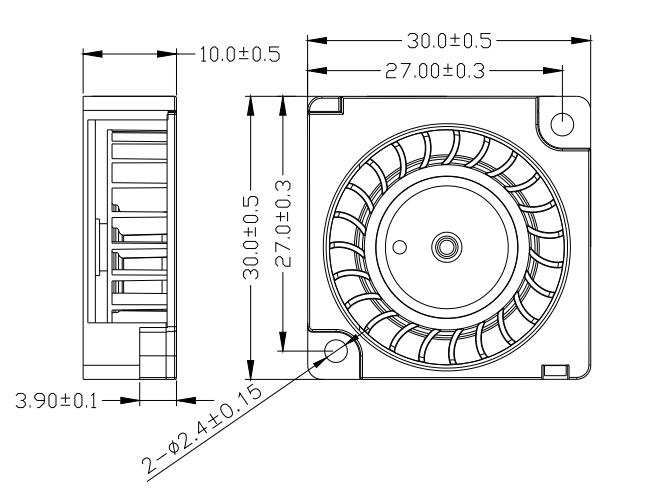

| Size: 30*30*10mm Series
| Voltage: DC 5V
| Current: 0.8Amp
| Speed: 8000rpm
| Total Airflow: 1.32CFM
| Air Pressure: 4.56 mmH2O
| Total Noise: 31.1dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY3010H05 | 5 | 4.3-5.4 | 0.08 | 0.40 | 8000 | 0.04 | 1.32 | 4.56 | 0.18 | 31.1 | |
