EC Fan,Industrial EC fan,EC Cooling fan,92mm EC Axial Fan
* Bearings: Ball /Sleeve/Fluid Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* CE Certificated
* Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:

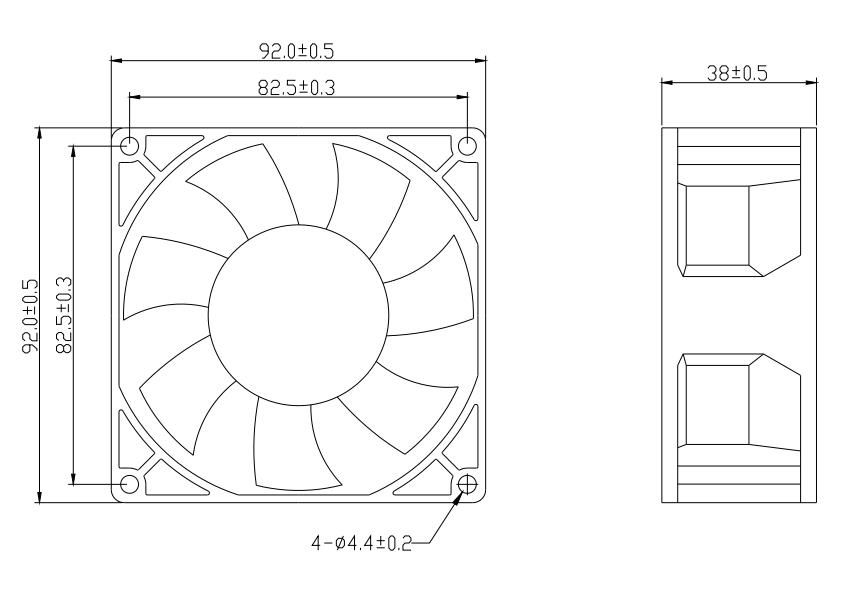

| Size: 92*92*38mm
| Voltage: EC 80-265
| Current: 0.1-1.8Amp
| Speed: 4500rpm

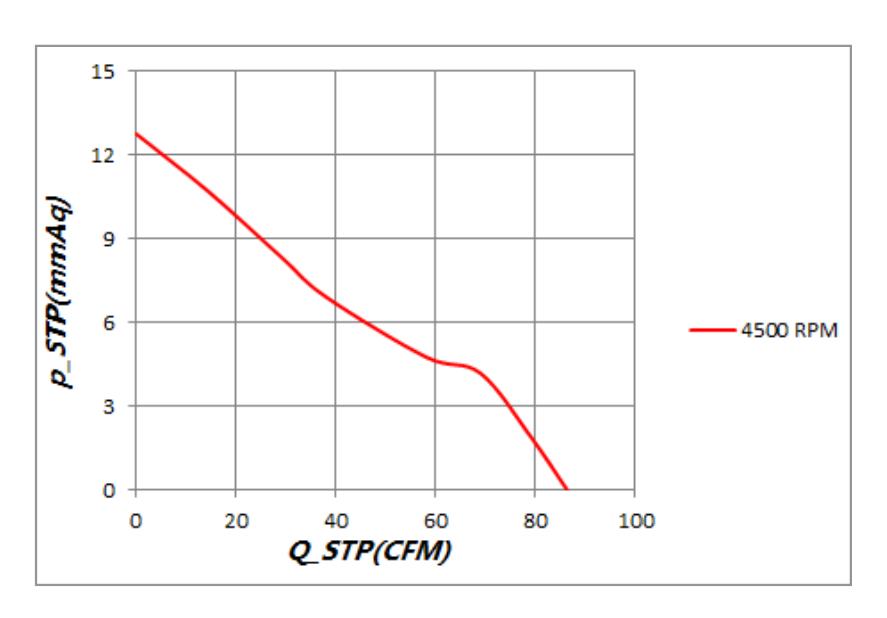

| Total Airflow: 86.38CFM
| Air Pressure: 12.76mmH2O
| Total Noise: 56 dBA
| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 92*92*38-H110 | 110 | 80to135 | 50/60 | 11 | 4500 | 2.45 | 86.38 | 12.76 | 0.50 | 56 |
| 92*92*38-H220 | 220 | 180to265 | 50/60 | 11 | ||||||
