133MM Centrifugal fan, backward centrifugal fan ,Air purifier centrifugal fan

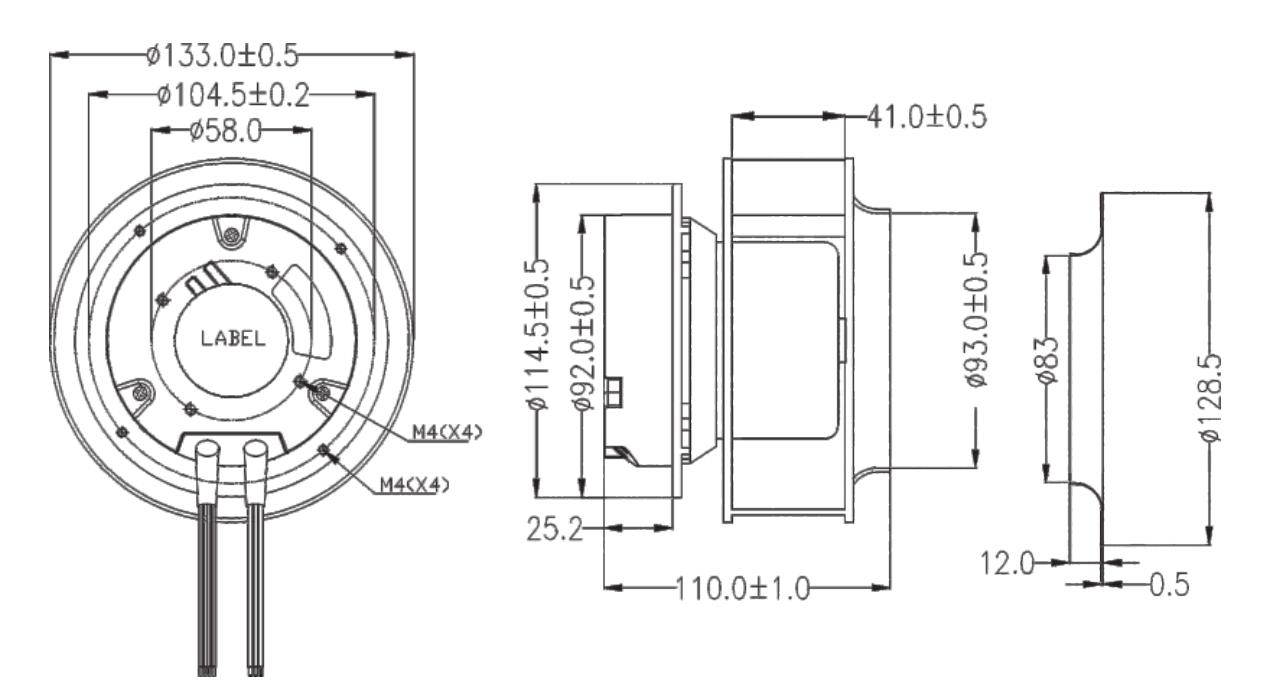

| Size: 133mm Diameter
| Voltage: EC 80-265V
| Current: 50/60Hz
| Speed: 3100/4500rpm
| Total Airflow: 130.8/210.92CFM
| Air Pressure: 19.34/41.67mmH2O
| Total Noise: 61.3/68dBA
Download
3D Model
SHARE:
Product details:
* Bearings: Ball Bearing
* Premium Plastic(UL94V-0
* 0-10V/PWM Stepless-speed control constantly variable speed.
* Brushless EC external Rotor Motor, Perfect working for different AC voltage range
* Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).

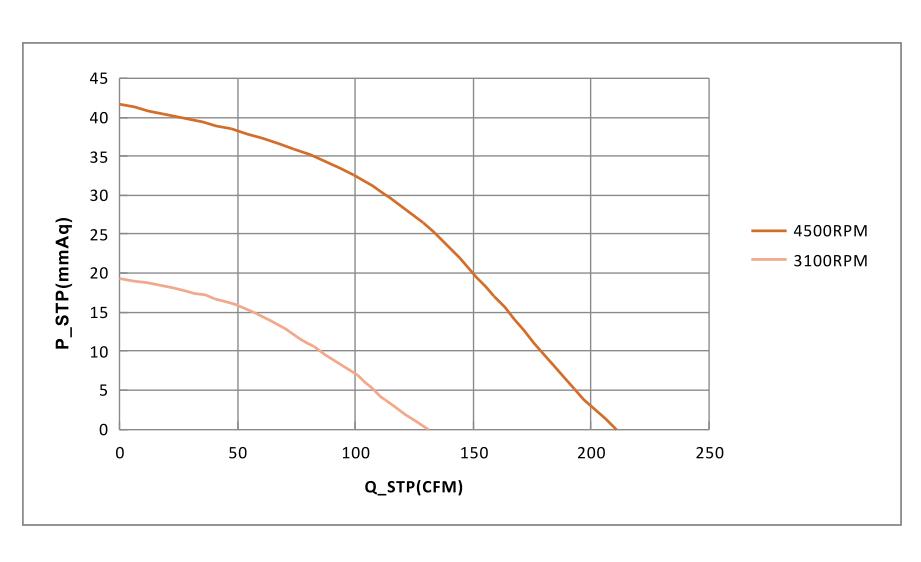

| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | CMH | CFM | mmH2O | INH2O | DB-A | |
| Φ133-H110 | 110 | 80to135 | 50/60 | 45 | 3100 | 222.4 | 130.8 | 19.34 | 0.76 | 61.3 |
| Φ133-H220 | 220 | 180to265 | 50/60 | 45 | ||||||
| Φ133-H110 | 110 | 80to135 | 50/60 | 60 | 4500 | 358.6 | 210.92 | 41.67 | 1.65 | 68 |
| Φ133-H220 | 220 | 180to265 | 50/60 | 60 | ||||||
