Centrifugal type 110V 230V EC Blower Fan backward curved centrifugal fan 225mm

Centrifugal fan 225MM , centrifugal fan ,AC Backward centrifugal fan


| Size: 225mm Diameter

| Voltage: AC80-265V

| Current: 50/60Hz

| Speed: 2200rpm

| Total Airflow: 645.8CFM

| Air Pressure: 38.9 mmH2O

| Total Noise: 71dBA


Send Inquiry Download 3D Model

SHARE:

Product Details



Product details:

 * Bearings: Ball Bearing

 * Premium Plastic material(UL 94V-0)

 * 0-10V/PWM Stepless-speed control constantly variable speed.

 * Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54

 * Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.

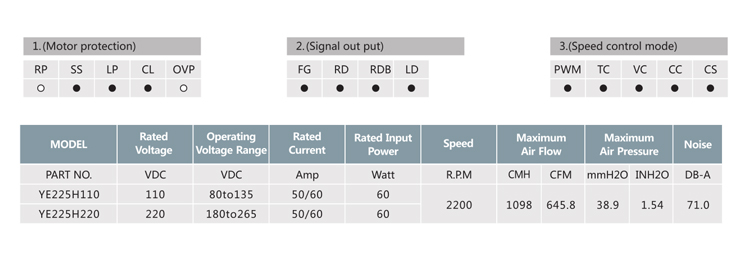

 * Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).

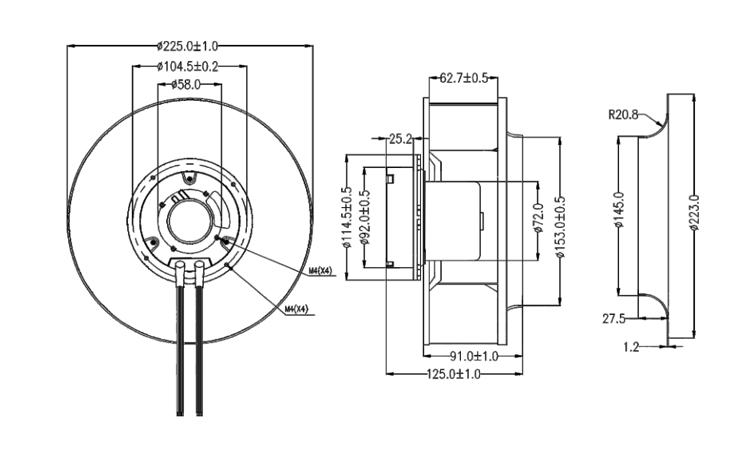

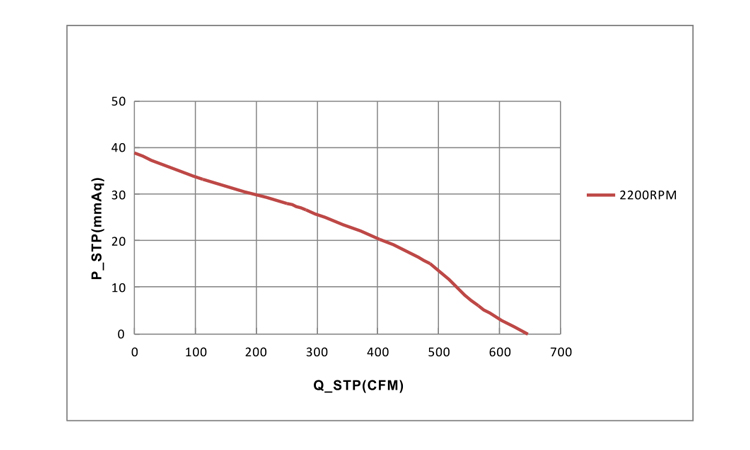

Centrifugal type 110V 230V EC Blower Fan backward curved centrifugal fan 225mm(图1)Centrifugal type 110V 230V EC Blower Fan backward curved centrifugal fan 225mm(图2)Centrifugal type 110V 230V EC Blower Fan backward curved centrifugal fan 225mm(图3)

Compare With Similar Items

SizeRated VoltageOperating Voltage RangeFrequencyRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise

VACVACHzWattR.P.MCMHCFMmmH2OINH2ODB-A
Φ225-H11011080to13550/606022001098645.838.91.5471.0
Φ225-H220220180to26550/6060
