OEM DC Fan,DC Brushless Fan,DC Cooling fan,Axial Fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

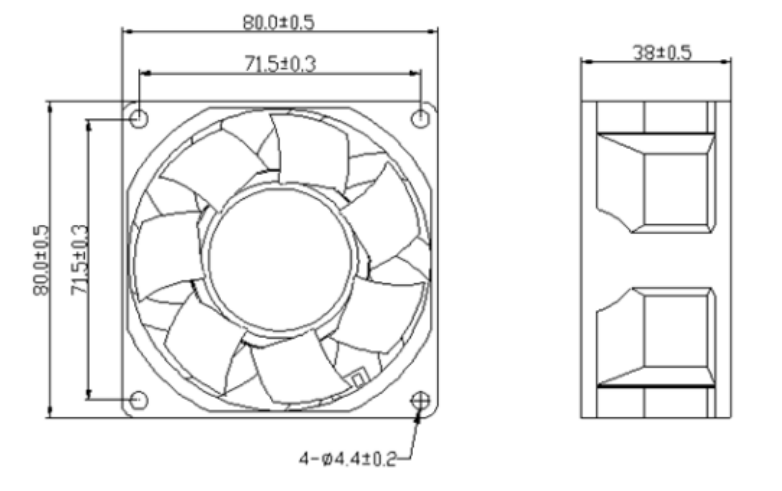

| Size: 80*80*38mm-1 Series
| Voltage: DC 12V-48V
| Current: 0.1-2.5Amp
| Speed: 4000-8500rpm
| Total Airflow: 50.03-111.87CFM
| Air Pressure: 8.1-35.67 mmH2O
| Total Noise: 45.6-66.6dBA

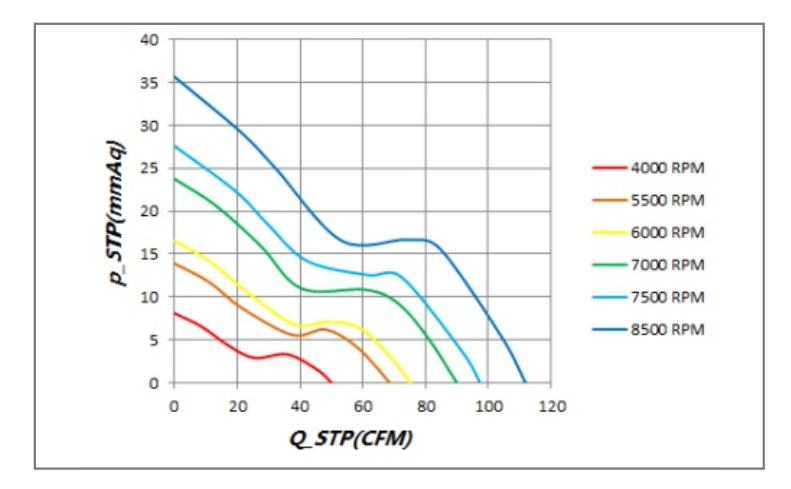

| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 80*80*38-L12 | 12 | 8.0to13.5 | 0.4 | 4.8 | 4000 | 1.42 | 50.03 | 8.1 | 0.32 | 45.6 |
| 80*80*38-L24 | 24 | 18to26.5 | 0.2 | 4.8 | ||||||
| 80*80*38-L48 | 48 | 36to54 | 0.1 | 4.8 | ||||||
| 80*80*38-M12 | 12 | 8.0to13.5 | 0.79 | 9.48 | 5500 | 1.94 | 68.55 | 13.91 | 0.55 | 54.2 |
| 80*80*38-M24 | 24 | 18to26.5 | 0.34 | 8.16 | ||||||
| 80*80*38-M48 | 48 | 36to54 | 0.16 | 7.68 | ||||||
| 80*80*38-H12 | 12 | 8.0to13.5 | 0.92 | 11.04 | 6000 | 2.12 | 75.01 | 16.53 | 0.65 | 56.2 |
| 80*80*38-H24 | 24 | 18to26.5 | 0.42 | 10.08 | ||||||
| 80*80*38-H48 | 48 | 36to54 | 0.2 | 9.6 | ||||||
| 80*80*38-H12-HH | 12 | 8.Oto13.5 | 1.32 | 15.84 | 7000 | 2.55 | 89.97 | 23.76 | 0.94 | 61 |
| 80*80*38-H24-HH | 24 | 18to26.5 | 0.68 | 16.32 | ||||||
| 80*80*38-H48-HH | 48 | 36to54 | 0.35 | 16.8 | ||||||
| 80*80*38-H12-VH | 12 | 8.Oto13.5 | 1.62 | 19.44 | 7500 | 2.76 | 97.41 | 27.59 | 1.09 | 63.5 |
| 80*80*38-H24-VH | 24 | 18to26.5 | 0.8 | 19.2 | ||||||
| 80*80*38-H48-VH | 48 | 36to54 | 0.45 | 21.6 | ||||||
| 80*80*38-H12-SH | 12 | 8.0to13.5 | 2.5 | 30 | 8500 | 3.17 | 111.87 | 35.67 | 1.4 | 66.6 |
| 80*80*38-H24-SH | 24 | 18to26.5 | 1.35 | 30 | ||||||
| 80*80*38-H48-SH | 48 | 36to54 | 0.63 | 30.2 | ||||||
