20060 EC Fan,EC Cooling Fan,EC Axial Fans
* Bearings: Ball Bearing
* Long Lifespan Up to 70 000 hrs.
* Strong Aluminum Frame Material.
* Premium Environmental and fire prevention PBT UL94V-0 impeller.
* CE Certificated.
* Customizable Wire and Connectors
Download
3D Model
SHARE:
Product details:

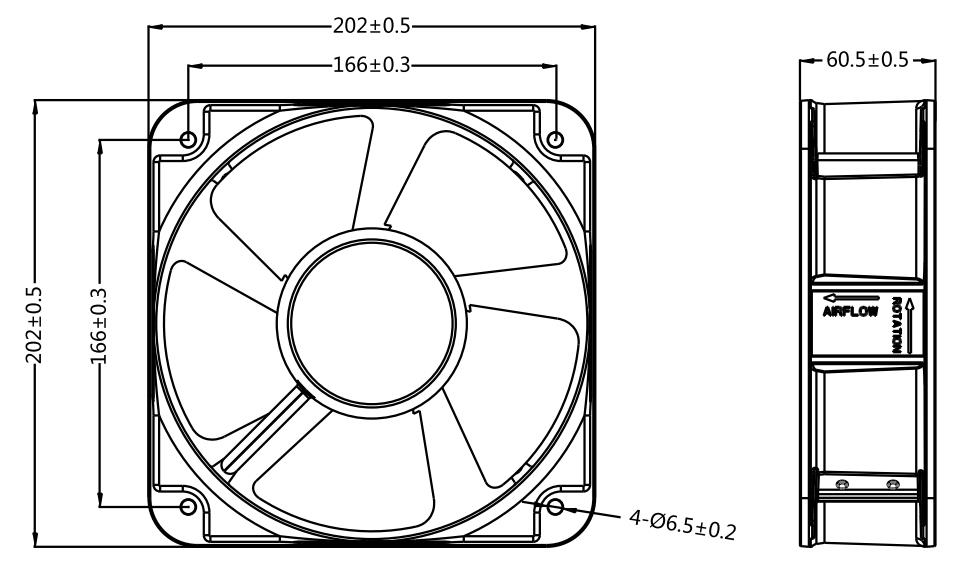

| Size: 200*200*60mm Series
| Voltage: EC/AC 80-265V
| Frequency: 50/60Hz
| Speed: 2000-3000rpm
| Total Airflow: 324-492.43 CFM
| Air Pressure: 10.62-22.69 mmH2O
| Total Noise: 58.6-68.5dBA
| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 200*200*60-L110 | 110 | 80to135 | 50/60 | 40 | 2000 | 9.17 | 324 | 10.62 | 0.42 | 58.6 |
| 200*200*60-L220 | 220 | 180to265 | 50/60 | 40 | ||||||
| 200*200*60-M110 | 110 | 80to135 | 50/60 | 50 | 2500 | 11.55 | 407.92 | 16.61 | 0.65 | 62.4 |
| 200*200*60-M220 | 220 | 180to265 | 50/60 | 50 | ||||||
| 200*200*60-H110 | 110 | 80to135 | 50/60 | 70 | 3000 | 13.94 | 492.43 | 22.69 | 0.89 | 68.5 |
| 200*200*60-H220 | 220 | 180to265 | 50/60 | 70 | ||||||
