17251 EC Fan,EC Cooling Fan,230V EC Cooling Fan,Axial flow EC fans
* Bearings: Ball Bearing
* Long Lifespan Up to 70 000 hrs.
* Strong Aluminum Frame Material.
* Premium Environmental and fire prevention PBT UL94V-0 impeller.
* CE Certificated!
* Customizable Wire and Connectors
* Customizable Function for Motor protection(SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

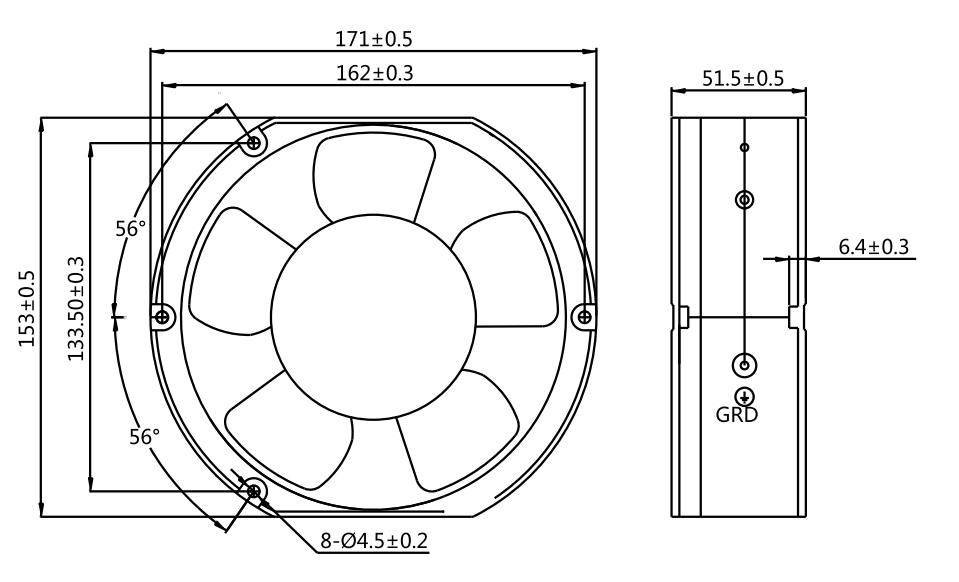

| Size: 171*153*51mm Series
| Voltage: EC/AC 80-265V
| Frequency: 50-60Hz
| Speed: 5000rpm

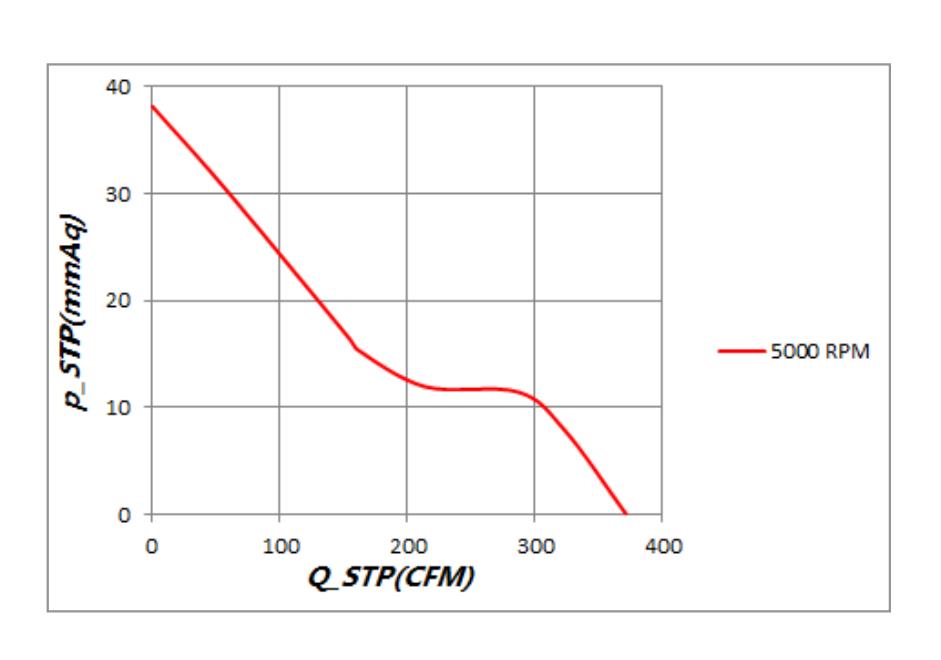

| Total Airflow: 371.86 CFM
| Air Pressure: 38.17 mmH2O
| Total Noise: 69dBA
| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 171*153*52-H110 | 110 | 80to135 | 50/60 | 64 | 5000 | 10.53 | 371.86 | 38.17 | 1.50 | 69 |
| 171*153*52-H220 | 220 | 180to265 | 50/60 | 55 | ||||||
