190MM Centrifugal fan, backward centrifugal fan ,Air purifier centrifugal fan

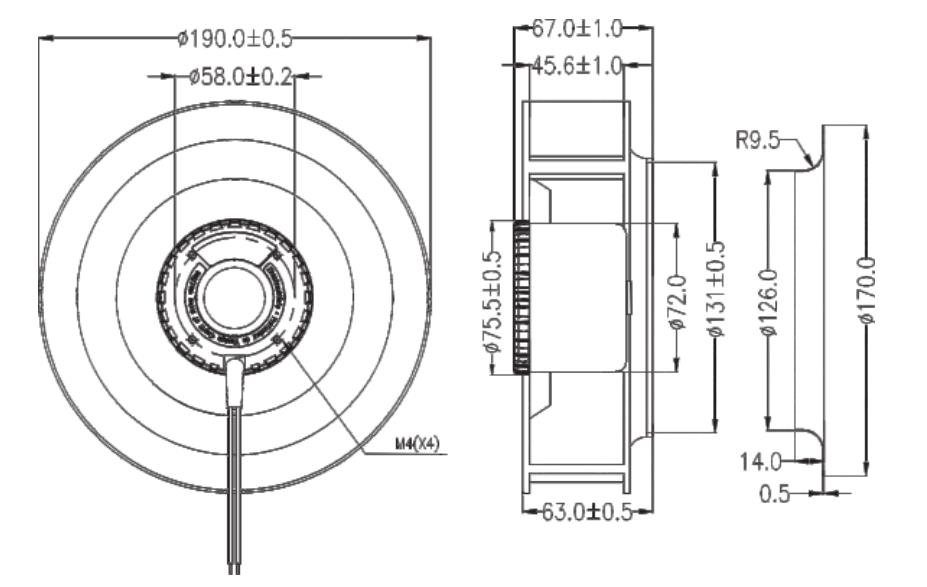

| Size: 190mm Diameter
| Voltage: DC 24V/48V
| Current: 2.5/5Amp
| Speed: 3000rpm

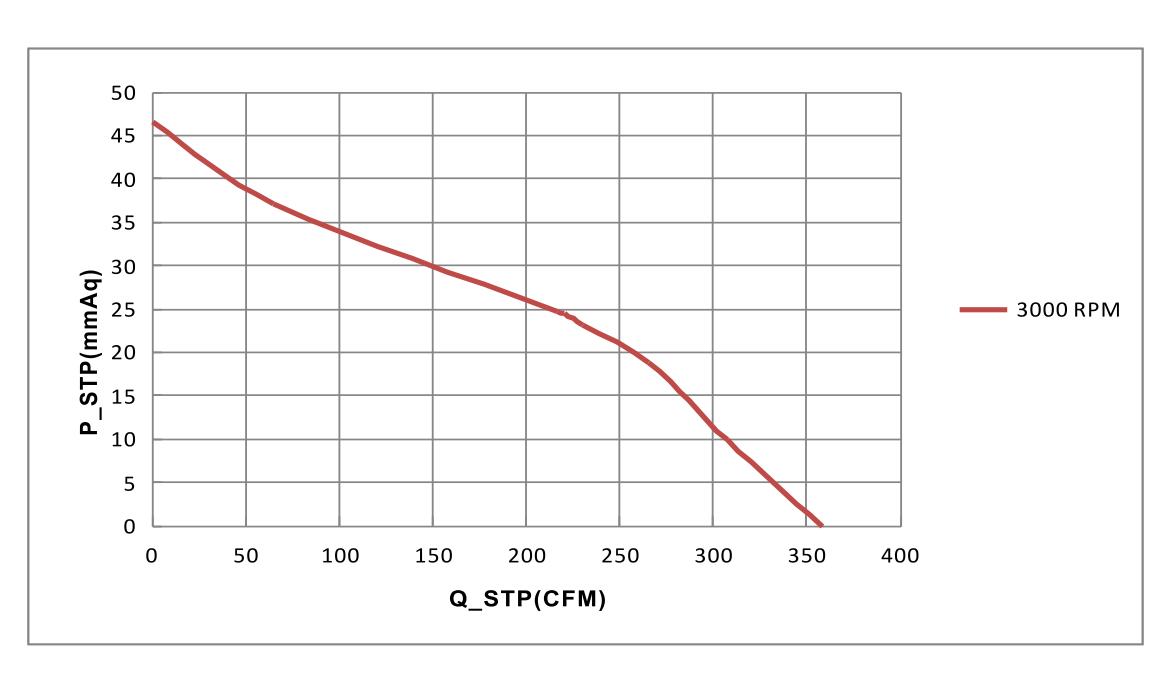

| Total Airflow: 358.2CFM
| Air Pressure: 46.6mmH2O
| Total Noise: 71.4dBA
Download
3D Model
SHARE:
Product details:
* Bearings: Ball Bearing
* Strong aluminum Impeller
* 0-10V/PWM Stepless-speed control constantly variable speed.
* Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54
* Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | CMH | CFM | mmH2O | INH2O | DB-A | |
| Φ190-H24 | 24 | 18to26.5 | 5 | 120 | 3000 | 608.9 | 358.2 | 46.6 | 1.9 | 71.4 |
| Φ190-H48 | 48 | 36to54 | 2.5 | 120 | ||||||
