Frameless dc coolingfan , Brushless axial DC fan , Mini DC fan
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 Material.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

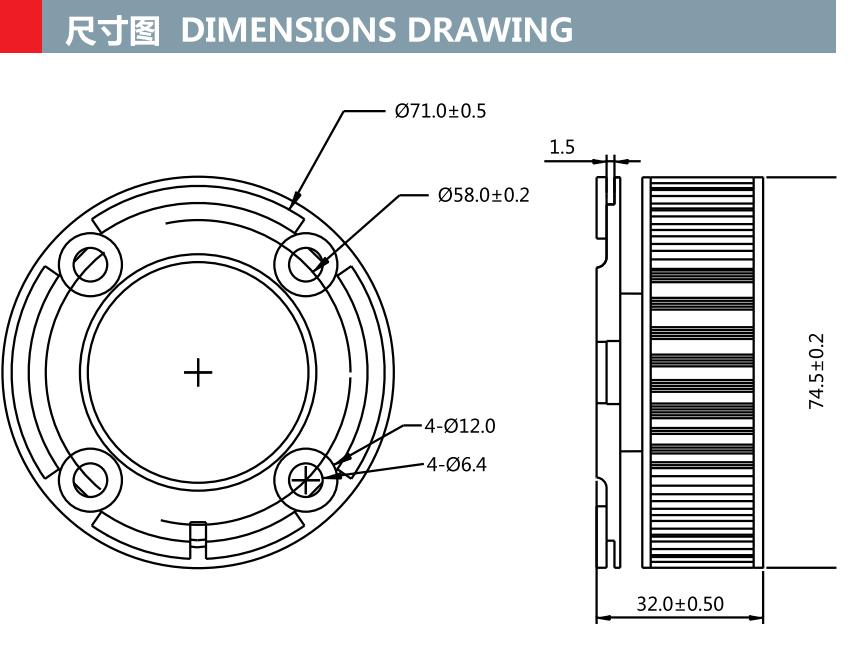

| Size: 75*75*32mm Series
| Voltage: DC 5V-24V
| Current: 0.19-1.2 Amp
| Speed: 3500-5500rpm
| Airflow: 19.1-30CFM

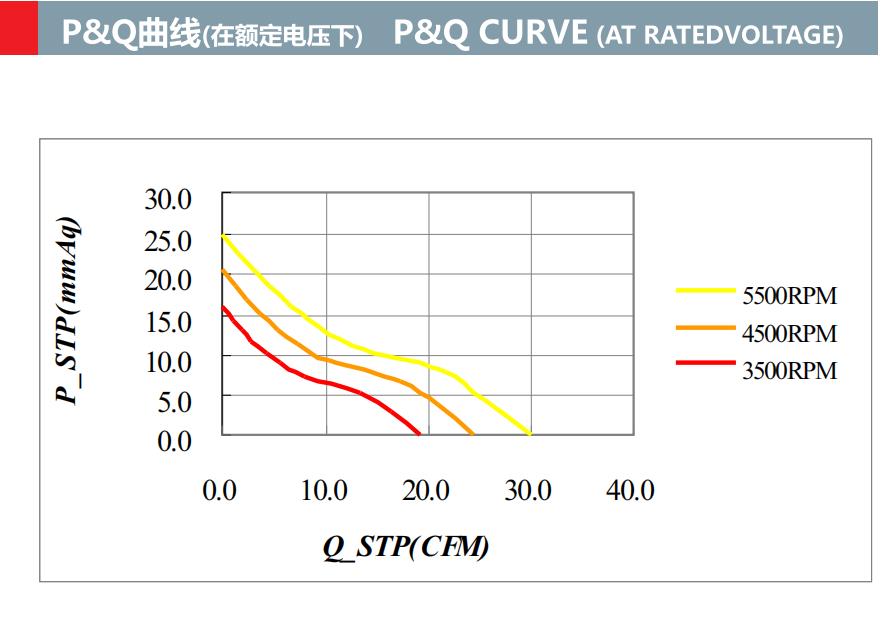

| Air Pressure: 15.9-25mmH2O
| Total Noise: 45-56.8dBA
| MODEL | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Download Specifications | ||
| PART NO. | VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| YY7532L12 | 12 | 7.0to13.5 | 0.76 | 9.12 | 3500 | 0.55 | 19.1 | 15.9 | 0.69 | 45 | |
| YY7532L24 | 24 | 18to26.5 | 0.37 | 8.88 | |||||||
| YY7532L48 | 48 | 36to54 | 0.19 | 9.12 | |||||||
| YY7532M12 | 12 | 7.0to13.5 | 0.98 | 11.76 | 4500 | 0.72 | 24.54 | 20.45 | 0.89 | 49 | |
| YY7532M24 | 24 | 18to26.5 | 0.47 | 11.38 | |||||||
| YY7532M48 | 48 | 36to54 | 0.25 | 11.70 | |||||||
| YY7532H12 | 12 | 7.0to13.5 | 1.2 | 14.4 | 5500 | 0.87 | 30 | 25 | 1.09 | 56.8 | |
| YY7532H24 | 24 | 18to26.5 | 0.58 | 13.92 | |||||||
| YY7532H48 | 48 | 36to54 | 0.3 | 14.4 | |||||||
