190MM Centrifugal fan, backward centrifugal fan ,Air purifier centrifugal fan

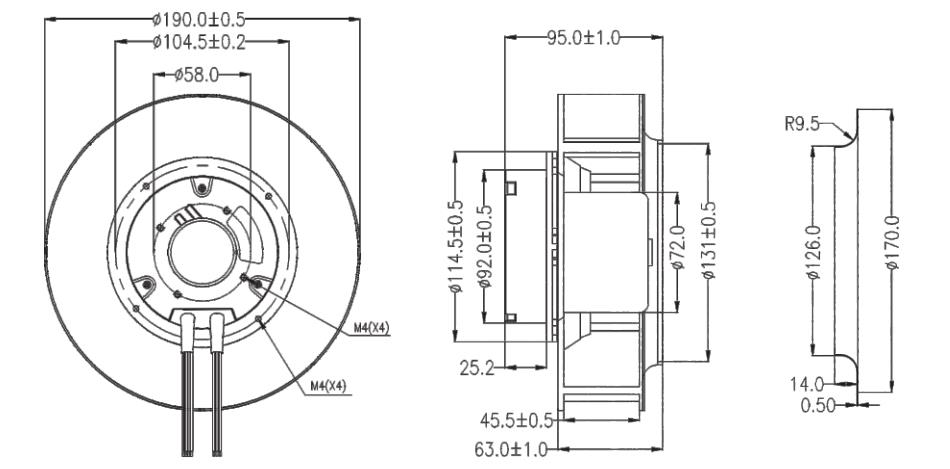

| Size: 190mm Diameter
| Voltage: EC 80-265V
| Current: 50/60Hz
| Speed: 2500/3000rpm

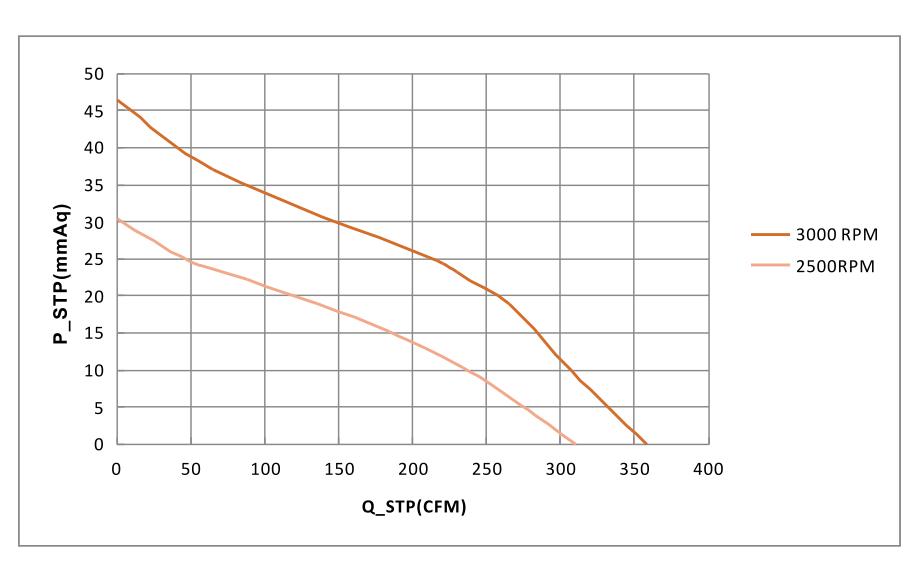

| Total Airflow: 310.3/358.2CFM
| Air Pressure: 30.4/46.6mmH2O
| Total Noise: 67.8/71.4dBA
Download
3D Model
SHARE:
Product details:
* Bearings: Ball Bearing
* Premium Plastic material(UL 94V-0)
* 0-10V/PWM Stepless-speed control constantly variable speed.
* Brushless DC external Rotor Motor, Motor Protection Type: IP44/IP54
* Special Rotor Opening Design,Tecch output, Locked-rotor protection,Over voltage protection, over-currect protection, solf start protection.
* Customizable Function for Motor protection(RP/SS/LP/CL ),Signal output(FG/RD/RDB),Speed control mode(PWM/TC/VC/CC/CS).
| Size | Rated Voltage | Operating Voltage Range | Frequency | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VAC | VAC | Hz | Watt | R.P.M | CMH | CFM | mmH2O | INH2O | DB-A | |
| Φ190-H110 | 110 | 80to135 | 50/60 | 45 | 2500 | 527.5 | 310.3 | 30.4 | 1.2 | 67.8 |
| Φ190-H220 | 220 | 180to265 | 50/60 | 45 | ||||||
| Φ190-H110 | 110 | 80to135 | 50/60 | 60 | 3000 | 608.9 | 358.2 | 46.6 | 1.9 | 71.4 |
| Φ190-H220 | 220 | 180to265 | 50/60 | 60 | ||||||
