slient fan , 12v DC Cooling fan, DC axial flow fans
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

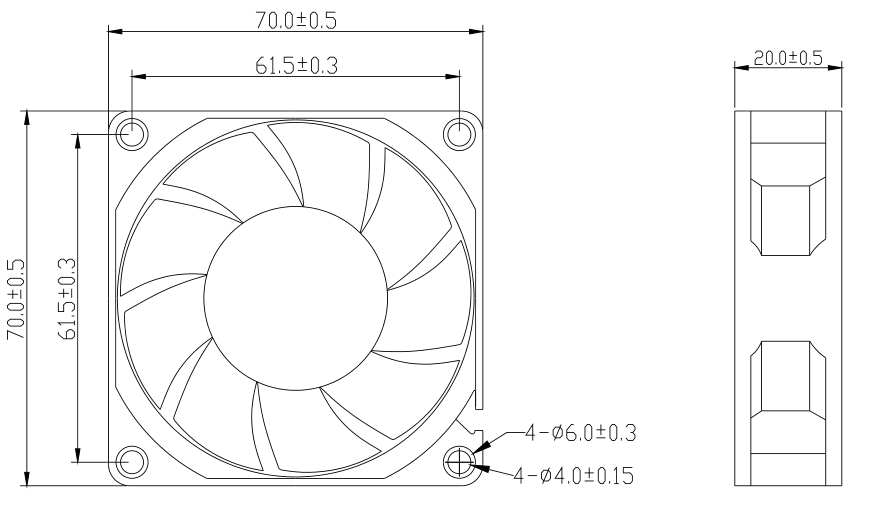

| Size: 70*70*20mm Series
| Voltage: DC 12V-24V
| Current: 0.06-0.48Amp

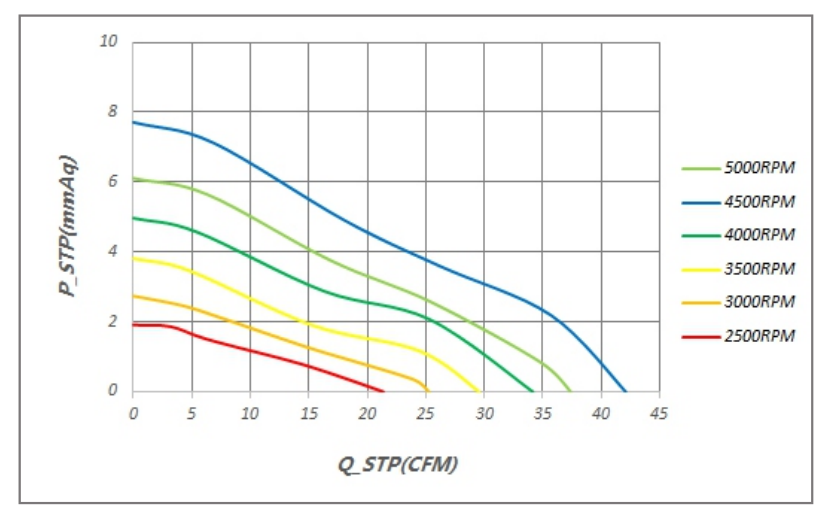

| Speed: 2500-5000rpm
| Total Airflow: 21-42CFM
| Air Pressure: 1.91-7.71mmH2O
| Total Noise: 26-44dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 70*70*20-L12 | 12 | 7.0to13.5 | 0.12 | 1.44 | 2500 | 0.60 | 21.36 | 1.91 | 0.08 | 26.3 |
| 70*70*20-L24 | 24 | 18to26.5 | 0.06 | 1.44 | ||||||
| 70*70*20-M12 | 12 | 7.0to13.5 | 0.20 | 2.40 | 3000 | 0.72 | 25.26 | 2.74 | 0.11 | 33.6 |
| 70*70*20-M24 | 24 | 18to26.5 | 0.11 | 2.64 | ||||||
| 70*70*20-H12 | 12 | 7.0to13.5 | 0.24 | 2.88 | 3500 | 0.84 | 29.55 | 3.81 | 0.15 | 38.8 |
| 70*70*20-H24 | 24 | 18to26.5 | 0.13 | 3.12 | ||||||
| 70*70*20-H12-HH | 12 | 7.0to13.5 | 0.34 | 4.08 | 4000 | 0.97 | 34.15 | 4.97 | 0.20 | 40.6 |
| 70*70*20-H24-HH | 24 | 18to26.5 | 0.17 | 4.08 | ||||||
| 70*70*20-H12-VH | 12 | 7.0to13.5 | 0.44 | 5.28 | 4500 | 1.06 | 37.39 | 6.11 | 0.24 | 42.2 |
| 70*70*20-H24-VH | 24 | 18to26.5 | 0.22 | 5.28 | ||||||
| 70*70*20-H12-SH | 12 | 7.Oto13.5 | 0.48 | 5.76 | 5000 | 1.19 | 42.09 | 7.71 | 0.30 | 44.3 |
| 70*70*20-H24-SH | 24 | 18to26.5 | 0.24 | 5.76 | ||||||
