brushless fan , 12V DC Cooling fan, axial flow fans
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Premium Environmental and fire prevention PBT UL94V-0 impeller and Frame.
* Full Certification included CE/UL/TUV.
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
Download
3D Model
SHARE:
Product details:

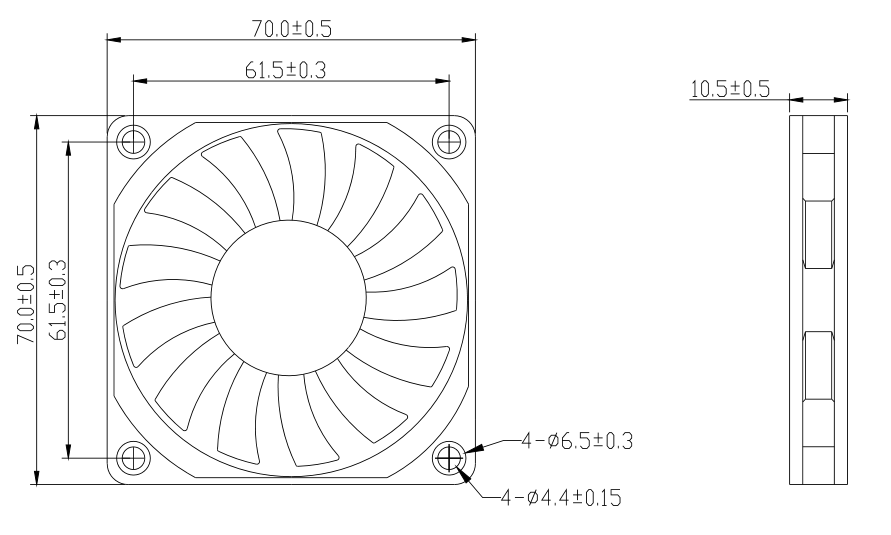

| Size: 70*70*10mm Series
| Voltage: DC 5V-24V
| Current: 0.05-0.21Amp
| Speed: 2000-3000rpm
| Total Airflow: 10-18CFM

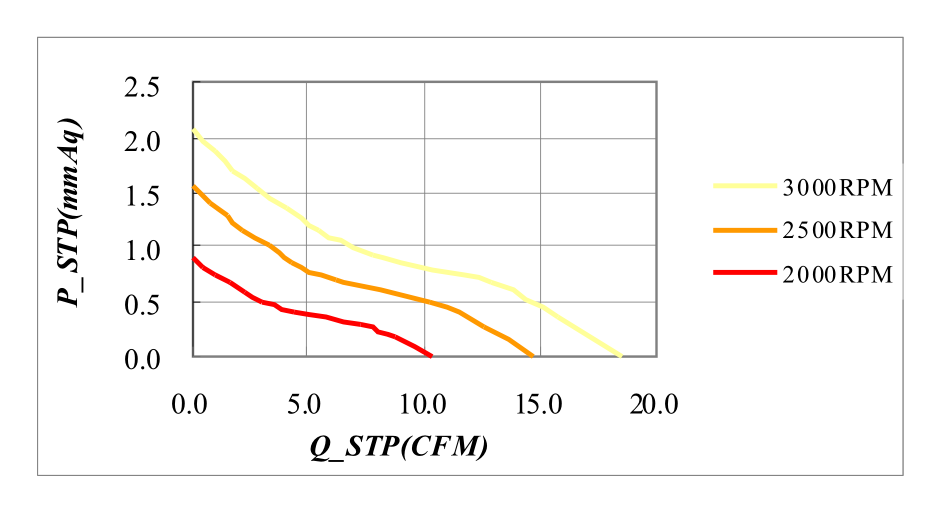

| Air Pressure: 0.91-2.07mmH2O
| Total Noise: 23-30dBA
| Size | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| VDC | VDC | Amp | Watt | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | |
| 70*70*10-LO5 | 5 | 3.6to6.8 | 0.21 | 1.05 | 2000 | 0.29 | 10.31 | 0.9 | 0.03 | 23.4 |
| 70*70*10-L12 | 12 | 7.Oto13.5 | 0.10 | 1.20 | ||||||
| 70*70*10-L24 | 24 | 18to26.5 | 0.05 | 1.20 | ||||||
| 70*70*10-MO5 | 5 | 3.6to6.8 | 0.33 | 1.65 | 2500 | 0.42 | 14.71 | 1.55 | 0.06 | 27.2 |
| 70*70*10-M12 | 12 | 7.0to13.5 | 0.14 | 1.68 | ||||||
| 70*70*10-M24 | 24 | 18to26.5 | 0.07 | 1.68 | ||||||
| 70*70*10-H12 | 12 | 7.0to13.5 | 0.20 | 2.40 | 3000 | 0.52 | 18.46 | 2.07 | 0.08 | 30.9 |
| 70*70*10-H24 | 24 | 18to26.5 | 0.10 | 2.40 | ||||||
